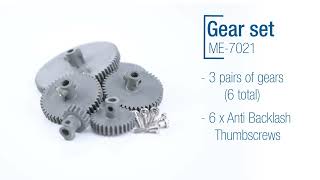

Set of six gears for Structures motors
What's Included
See the Product Description for this item's included accessories.
What to Consider
See the Buying Guide for this item's required, recommended, and additional accessories.
Product Summary
These three pairs of gears are driven by stepper motors or servo motors to make PASCO Structures move. These three pairs enable three different gear ratios (1:1, 2:1, 4:1) with the same shaft separation, making it easy to change gear ratios.
The gears are secured on the motor shaft or PASCO Structures axles using the included anti-backlash screws.

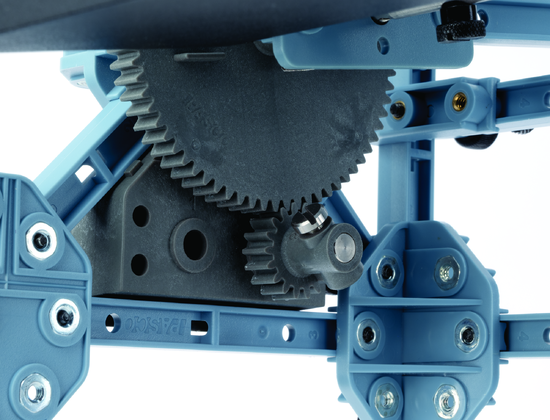

The 60T and 72T gears have the hole and threaded hole features that allow a Structures I-beam to be attached directly to the gear.
Applications
- Raise and lower a drawbridge made from PASCO Structures.
- Add motors to operate a crane made from PASCO Structures.
- Steer the front wheel of a 3-wheel robotic car made from PASCO Structures.
- Explore the affect of gear ratios on speed.
- Explore the affect of gear ratios on torque.

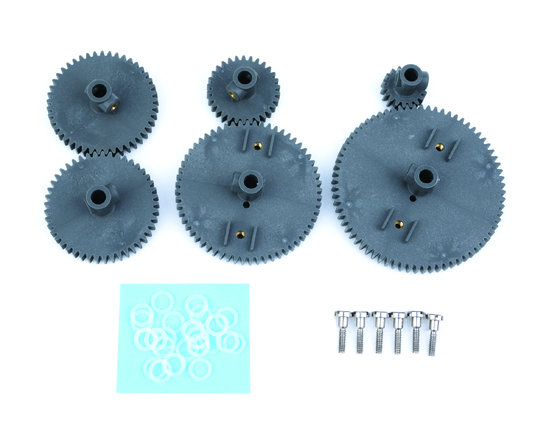

What's Included
- 1x 18-tooth gear
- 1x 30-tooth gear
- 2x 45-tooth gear
- 1x 60-tooth gear
- 1x 72-tooth gear
- 6x Anti-backlash screws
- 12x Washers for exact spacing
Product Specifications

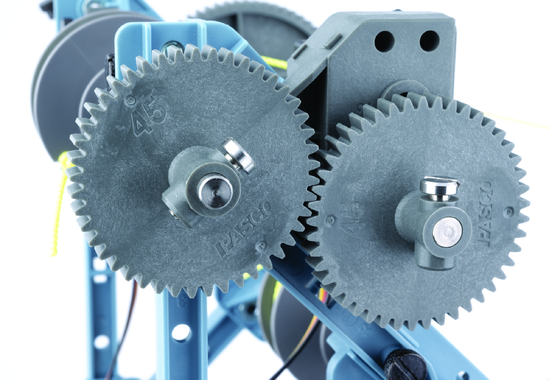

| 1:1 Gear ratio | Two 45-tooth gears |
| 2:1 Gear ratio | 60-tooth and 30-tooth gears |
| 4:1 Gear ratio | 72-tooth and18-tooth gears |
| Center-to-center spacing of set of two gears | 4.8 cm |
| Anti-backlash screws | 8-32 3/4-inch |
| Gear shaft diameter | 0.25 inch/6.4 mm |
Buying Guide
| Recommended Accessories | P/N | |
|---|---|---|
| High Speed Stepper Motor | PS-2976 | |
| Low Speed Stepper Motor | PS-2978 |
