Modular Circuits are a groundbreaking solution to complex circuit activities that accurately associates real circuits with textbook circuit examples. Using this familiar design, students can successfully recreate their drawn circuit diagrams, generate live data, and confidently explore electrical concepts. This page compares our Modular Circuit Kits to help you determine which kit is best for your needs.
Table of Contents:
- Data Collection
- Wireless AC/DC Module
- Available Kits
- Modules Included in Each Starter Kit
- Modules Included in Each Expansion Kit
- Capacitor Modules

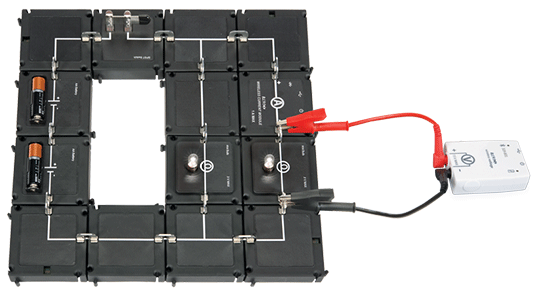

The 8 cm x 8 cm modules promote collaboration and focus on conceptual understanding. Each module displays the schematic symbol as well as real components (resistors, capacitors, motors, etc.) to make the connection between circuit diagrams and functioning circuits. The modules snap together but require a jumper clip to make the electrical connection which reinforces the concept of a complete circuit.
The clean, visual layout makes it easy for students to correctly wire their circuits and to quickly diagnose when a mistake is made. No more tangled nests of wires wasting precious time during labs.
Build up your supply with Starter Kits and Expansion Kits. You can also buy individual Circuit Modules to fit the needs of your investigations!
Data Collection
Data collection is wireless to computers, Chromebooks, and tablets using both:
These sensors only allow current to be measured in series and voltage to be measured in parallel, helping students understand the proper use of meters with an electrical circuit. The data collection aspect also connects students to the data in real time, creating a richer experience that ensures better retention of core concepts. If preferred, traditional meters can be used in place of (or in addition to) the wireless sensors.
Wireless AC/DC Module

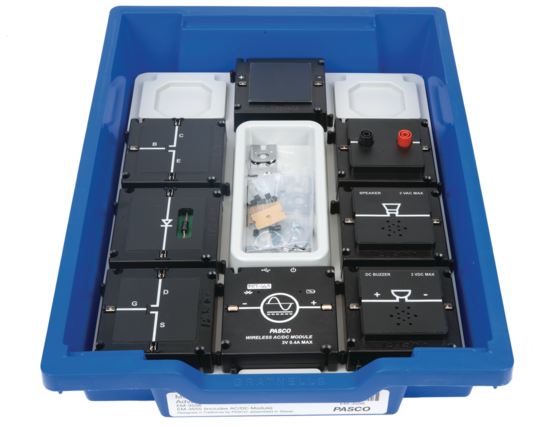

The Wireless AC/DC Module can act as a DC power supply, as well as generator for Sine, Triangle, and Square AC signals. This latest circuit module allows you to perform experiments with Modular Circuits including Ohm’s Law, RC Circuit Time Constant, and LRC labs.
Available Kits
Modules Included in Each Starter Kit
| Circuit Modules | Starter Kits | |
|---|---|---|

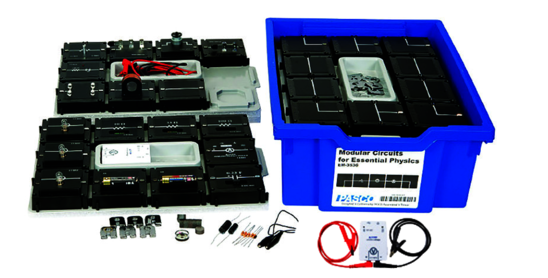

| Basic Modular Circuits Kit (EM-3535) | Essential Physics Modular Circuits Kit (EM-3536) | |
| 4 | 5 | |
| 4 | 4 | |
| 2 | 2 | |
| 2 | 3 | |
| 2 | 2 | |
| 1 | 1 | |
| 1 | 1 | |
| 1 | 1 | |
| 1 | 1 | |
| 1 | 1 | |
| 1 | 1 | |
| -- | 1 | |
| -- | 1 | |
| -- | 1 | |
| -- | 1 | |
| -- | 1 | |
| -- | 1 | |
| -- | 1 | |
Modules Included in Each Expansion Kit
| Circuit Modules | Expansion Kits | |
|---|---|---|
| Advanced Expansion Kit (EM-3556) | AC/DC Expansion Kit (EM-3555) | |
| -- | 1 | |
| 1 | 1 | |
| 1 | 1 | |
| 1 | 1 | |
| 1 | 1 | |
| 1 | 1 | |
| 1 | 1 | |
| 1 | 1 | |
Capacitor Modules
These new capacitor modules are available for individual purchase and compatible with all Modular Circuits kits. (A capacitor module of 0.33 F is also available and included in the Basic and Essential Physics starter kits.)
Additional Resources
If you have additional questions regarding our equipment or software, contact PASCO Technical Support. We're here to help.
