Product Summary

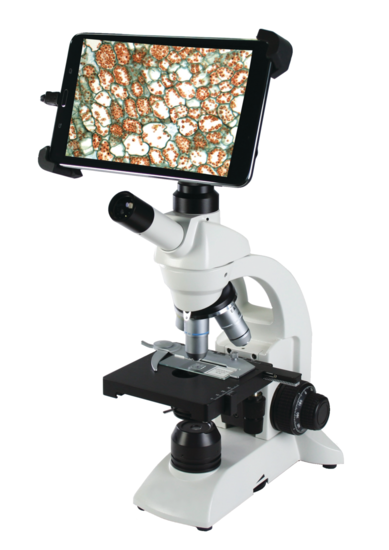

The SE-6203 features high speed, full-resolution imaging technology built into some of our most popular microscopes. The 8" WiFi digital tablet transmits live images to iOS or Android devices. Use it as a conventional microscope or share live images using WiFi tablets, wireless laptops. Tablet includes preloaded Motic apps.
Connect, view, and share images easily and affordably with the SE-6203.
Product Specifications
| Optical System | - Widefield 10x eyepiece with pointer. Accepts optional #965-160 eyepiece reticle.
- 45° inclined monocular viewing head rotates 360° for easy sharing by more than one student.
- DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100x (1.25 N.A.) objectives. All are achromatic, parfocalled, parcentered and color-coded.
- 4-hole objective turret, reverse position, ball-bearing mounted for smooth, precise changes in magnification.
|
| Illumination | - LED light rated up to 50,000 hours life, illumination equal to a 20 watt tungsten bulb.
- Batteries allow up to 500 recharges, for a total of 20,000 to 25,000 hours use from a single set of 3 AA rechargeable nickel hydride batteries. Battery charger included with microscope, automatically shuts off when batteries are fully charged - no danger of overcharging batteries and shortening battery life. No expensive recharger station needed. Plug directly into wall outlet, or use ordinary, inexpensive power strip for recharging multiple microscopes. Indicator light changes from red to green
- Single 8 hour charge allows up to 50 hours of use.
- Rheostat intensity control
|
| Focusing | - Coaxial focusing controls.
- Stage moves up or down, eyepiece and body remain fixed.
- Slip clutch prevents damage to focusing system.
- Tension adjustment eliminates stage drift.
- Safety rack stop prevents damage to slides and objective lenses.
|
| Stage | - Large 120mm x 120mm stage, with professional quality, low profile mechanical specimen holder with low-position coaxial x-y controls.
- 1.25 N.A. Abbe condenser with spiral focusing mount, iris diaphragm, swing-out filter holder, blue filter supplied.
|
| Tablet | - 8" LCD Android tablet with 1280x800 screen resolution
- Connection: WiFi; micro SD card
- WiFi Resolution 1920x1080 / 1280x720
- 4.0MP capture resolution
- WiFi (2.4 or 5GHz) and Ethernet (RJ45)
- MotiConnect App
- Connect 5 WiFi devices at one time
- Connect office/clinic/business network through RJ45 port connection
|
| Packing | - Individual: Ship wt. 12.7 kgs (28 lbs), Dimensions 38x23x71cm (15x19x28 in.)
- Molded styrofoam container with instruction brochure and vinyl dustcover. Tablet shipped in same box.
|
Experiment Library
Perform the following experiments and more with the Microscope with Detachable Tablet (40-1000X).
Visit PASCO's Experiment Library to view more activities.
College • High School / Biology • Environmental Science
Students use a digital microscope compatible with PASCO software to observe and identify life forms in a sample of pond water.
College • High School / Biology
Students use a digital microscope compatible with PASCO software to make qualitative and quantitative observations while dissecting a flower.
College • High School / Biology
Students learn how to use PASCO software to analyze images captured from a compatible digital compound microscope, and how to prepare dry and wet mount slides. Recommended for anyone new to digital microscopy.
