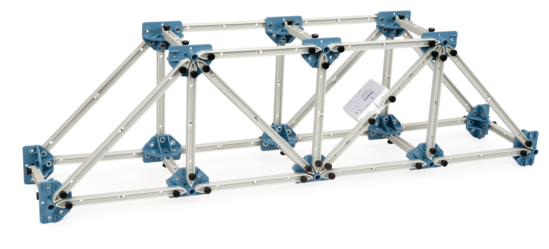

A wireless way to measure tension and compression forces in PASCO Structures while also providing acceleration data for all three dimensions plus the resultant. Included in the Building Better Bridges Kit.
See the Buying Guide for this item's required, recommended, and additional accessories.
Product Summary
The Wireless Load Cell and Accelerometer is designed to measure loads in PASCO's Structures System. It is particularly useful for measuring vibrations because it includes an accelerometer and has no wires to impede movement.
Product Specifications
| Force Sensor |
|
| Accelerometer |
|
| Connectivity | USB and Bluetooth 5.2 |
| Logging | Yes |
| Battery Type | Rechargeable LiPo |
Data Collection Software
This product requires PASCO software for data collection and analysis. We recommend the following option(s). For more information on which is right for your classroom, see our Software Comparison: SPARKvue vs. Capstone »
Connectivity Options
This product can connect directly to your computer or device with the following technologies. No Interface required. See the following guide for details regarding device compatibility: Wireless Bluetooth Product Compatibility »
- Bluetooth Low Energy (BLE)
- Universal Serial Bus (USB)
Dedicated Datalogging with SPARK LXi2
Consider an all-in-one, touchscreen data collection, graphing, and analysis tool for students. Designed for use with wired and wireless sensors, the SPARK LXi2 Datalogger simultaneously accommodates up to five wireless sensors and includes two ports for blue PASPORT sensors. It features an interactive, icon-based user interface within a shock-absorbing case and arrives packaged with SPARKvue, MatchGraph!, and Spectrometry software for interactive data collection and analysis. It can additionally connect via Bluetooth to the following interfaces: AirLink, SPARKlink Air, and 550 Universal Interface.
Buying Guide
| Recommended Accessories | P/N | |
|---|---|---|
| Wireless Sensor Charging Station Recommended charging solution for multiple sensors | PS-3599 |
| Replacement Parts | P/N | |
|---|---|---|
| Micro USB Cable | PS-3584 | |
| Wireless Sensor 1000 mAh Replacement Battery | PS-3295 |
Product Guides & Articles
Force & Acceleration Sensors
Force and acceleration sensors are devices that measure force properties and aspects of motion. You can apply these sensors while investigating phenomena in fields like physics, engineering, and physical sciences.
Experiment Library
Perform the following experiments and more with the Wireless Load Cell and Accelerometer.
Visit PASCO's Experiment Library to view more activities.
Moments in Equilibrium
In this lab, students construct a bridge to explore moments in equilibrium. Students will move weights across their structure, measure reaction forces, and develop an understanding of moments.
Forces in Equilibrium
In this lab, students first compare forces created from weights hanging from a load cell. Then, students will construct simple bridges, add weights, and measure forces to explore force interactions within a structure.
Truss Analysis
In this lab, students construct bridges and measure the forces in each member to develop a deeper understanding of compression and tension within a structure.
Internal Forces
In Part 1, students learn how to measure tension and compression using a load cell and beams. In Part 2, students construct a bridge, then, study tension and compression by measuring forces using a load cell and weights.
Strength of Members
In this lab, students use a force sensor to study the force limits of samples varying in length and thickness. Students will analyze the impacts of compression and tension on each sample to determine how length and thickness influence...
Support Documents
| Manuals | ||
|---|---|---|
| Wireless Load Cell and Accelerometer Manual | English - 1.25 MB | |
| Safety Sheets | ||
| Lithium Battery Safety Data Sheet | English - 593.56 KB | |
| Knowledge Base | ||
| Battery Replacement Matrix | Feb 7th, 2025 | |
| How do I troubleshoot connecting a wireless sensor? | Dec 13th, 2024 | |
| Windows asks for a PIN number when connecting wireless sensor or device | Feb 5th, 2025 | |
| Wireless sensor or device not charging | May 9th, 2025 | |
| Android asks for a PIN number to pair a wireless device to system | Aug 29th, 2023 | |
| Battery replacement instructions for PS-3216 | May 16th, 2024 | |
| Battery warranty for rechargeable lithium ion and lithium polymer batteries | Jan 27th, 2025 | |
| Change the sign on a load cell | Jun 26th, 2024 | |
| How to install the Data Streamer app extension within Microsoft Excel | Apr 5th, 2023 | |

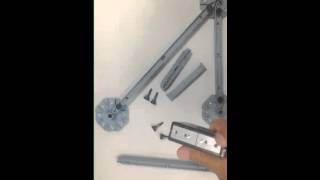

| Incorporating a load cell into a structure | Mar 8th, 2023 | |
| Principle of Operation - Force Sensor | Jan 22nd, 2025 | |
| Tips for use of micro USB cables | Aug 29th, 2023 | |
